Cabinet Overlay Information

Standard Overlay Mod-Full Overlay

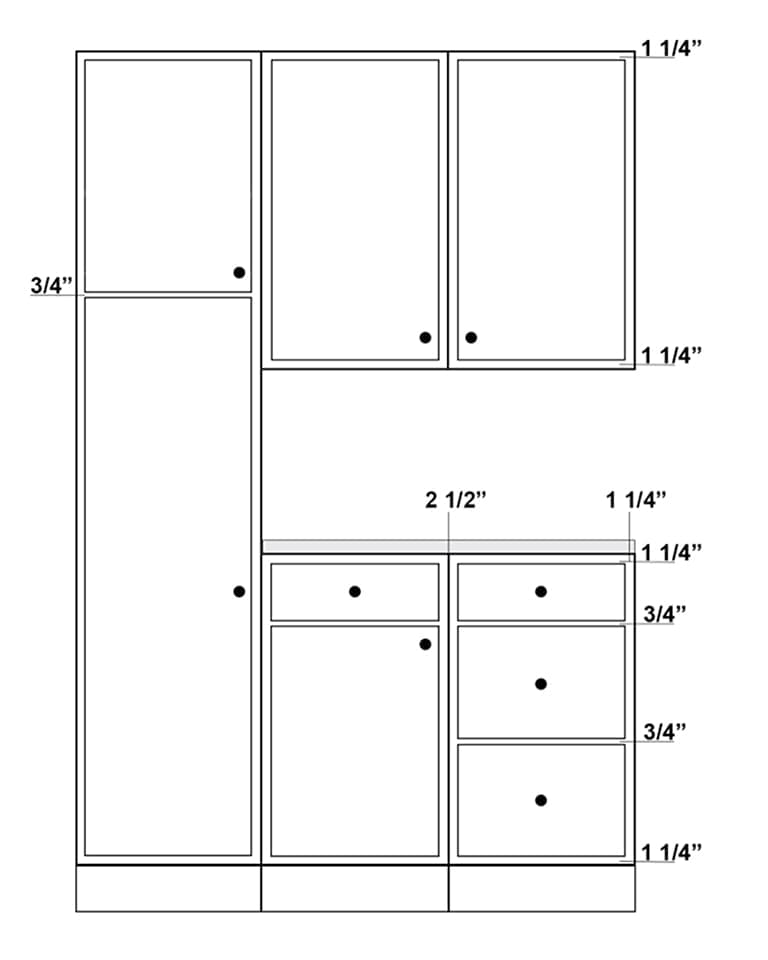

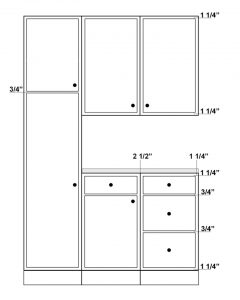

Vertical reveals between doors or drawers of connecting cabinets will
be 2 1/2″. Horizontal reveals between stacked drawers, between drawers
and doors and between stacked doors will be 3/4″. Reveals at the
top and bottom of walls, talls, bases, office, and vanities will be 1 1/4″.

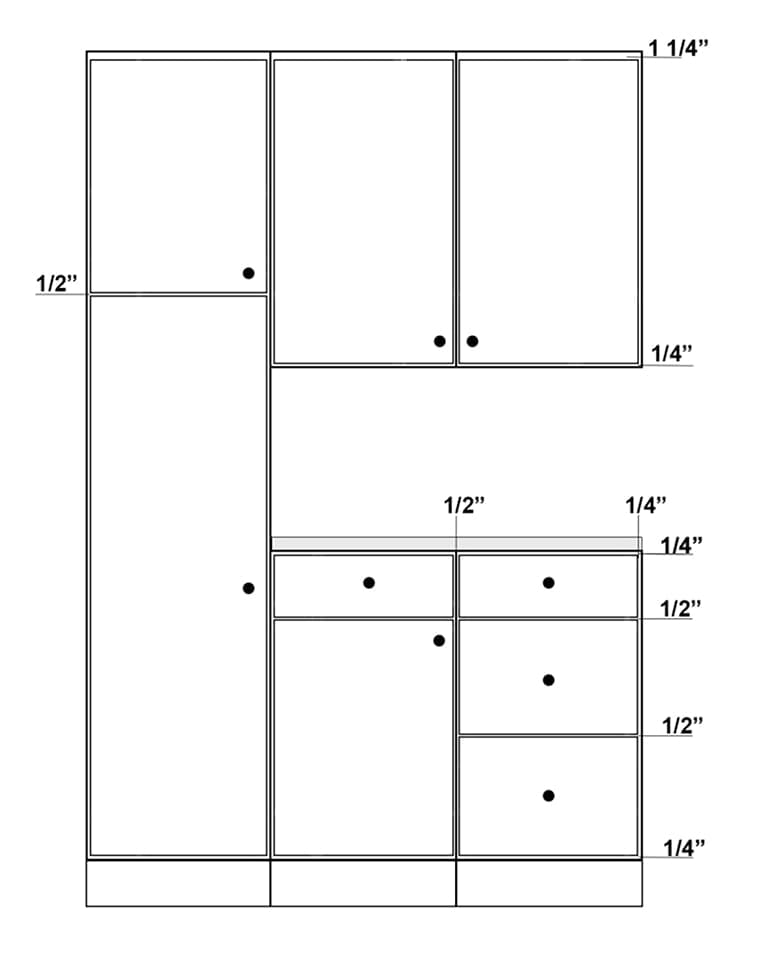

Vertical reveals between doors or drawers of connecting cabinets will
be 1/2″. Horizontal reveals between stacked drawers, between drawers
and doors and between stacked doors will be 1/2″. Reveals at the top of
walls and talls will be 1 1/4″ and the bottom will be 1/4″. Reveals at the
top and bottom of bases, office and vanities will be 1/4″.
